- 10+ years underlying technology precipitation of video transmission
- Support AV analog camera input
- Supports Fc port output
- Rich interfaces, easy to use
- Ultra-small volume
- Zero electromagnetic interference
|
Model
|

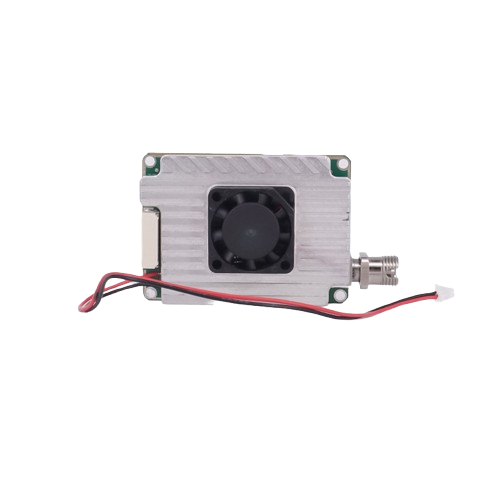

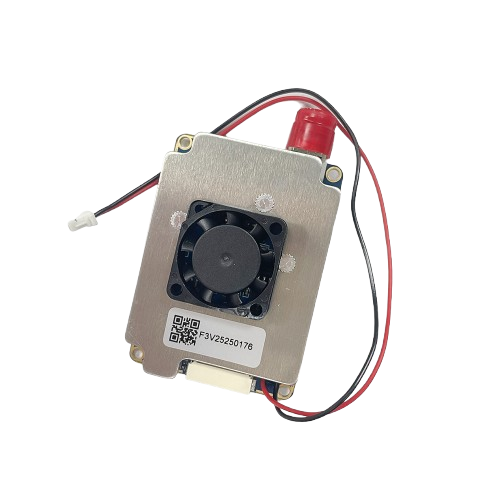

NanoHD F3
|
|---|---|
| Transmission rate | 0~100Mbps |
| Transmission distance | fiber 0~20km/80km |
| Signal data interface | GH1.25 |
| End to end connector | FC/APC Connector |
| Data format | TTL/SBUS |
| Input voltage | 9~28V |
| Size | 56*36*13mm |
| Weight | 20g |
| Shell material | aluminum alloy |
| Fiber wavelength | 1310/1550nm |
| Optical fiber housing material | abs |
| Optical fiber specification | 0.3mm |
| Optical fiber interface | FC interface |
| Fiber type | Single-mode fiber |
| Video standard | NTSC/PAL/SECAM |
| Data direction | bidirectional |
| Encoding mode | H.265/H.264 Configurable |
| Video bit rate | 500kbps~15Mbps adjustable |
| Transport protoco | RTMP、RTSP、TS |
| Video interface | AV interface |
| Operating temperature | -40℃~+70℃ |
